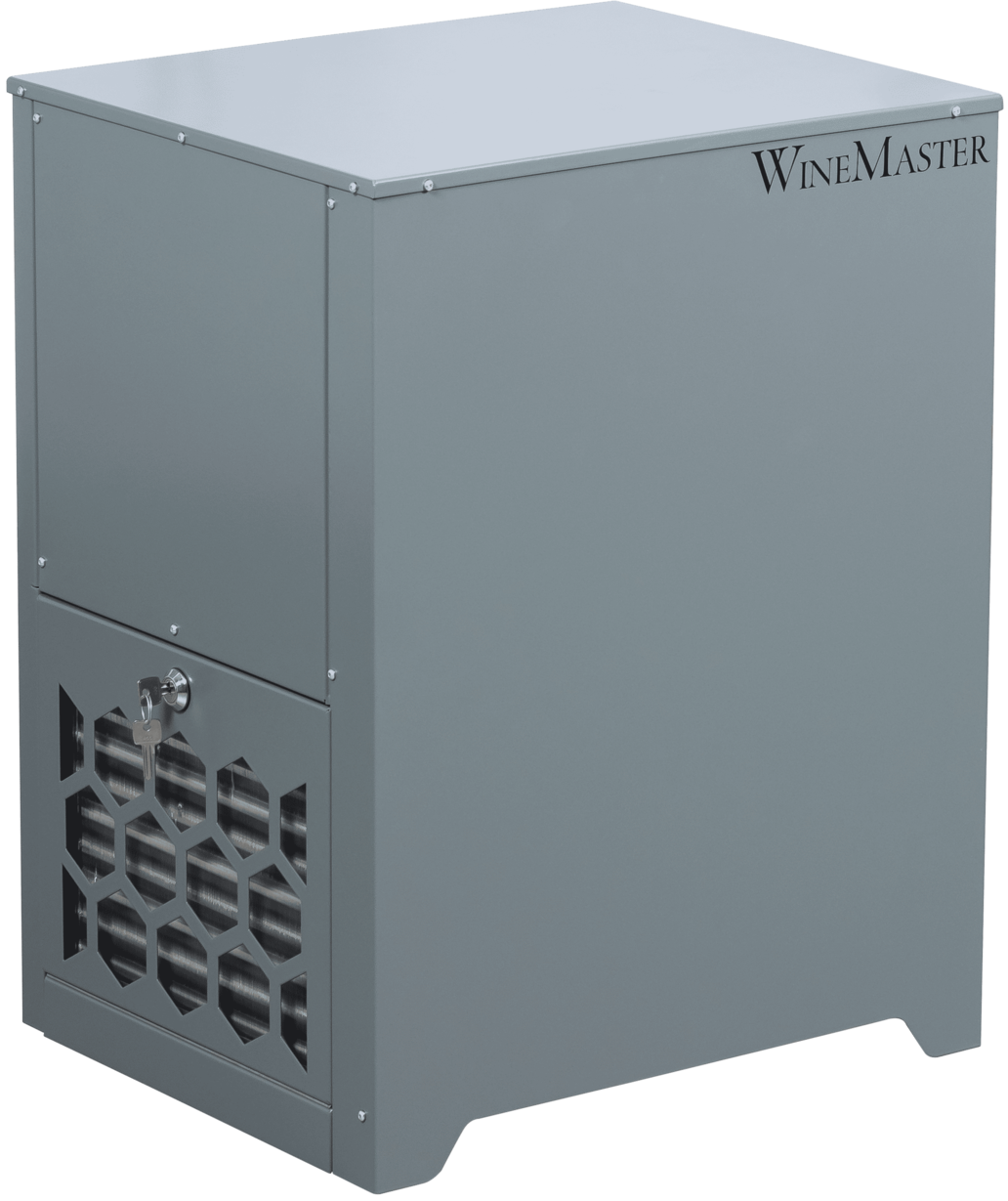

Wine OUT25 X

WineMaster offers a discreet air conditioner with a different design and even greater performance.

Secure online payment
Installation and personalised support
Fast delivery and tracking

Technical data

Power supply	235 V - 50Hz + 3 m cable
Air-conditioning capacity*	Up to 25 m³
Overall dimensions	W 511 x H 661 x D 493 mm
Net weight	53 Kg
Cooling capacity	550 W at 15°C
Power consumption	400 W
Noise level (outside the cellar)	48 dB at 1 m / 40 dB at 3 m
Cellar airflow (cold side)	150 to 200 m³/h
Outside air flow rate (warm side)	150 to 200 m³/h
Refrigerant	R290
Heating resistor	250 W
Setting the temperature	Preset at 12°C, adjustable between 8 and 18°C
Max. outdoor temperature	40°C
Heating belt	Yes

*: With insulation adapted to the temperature and volume of the cellar

Installation

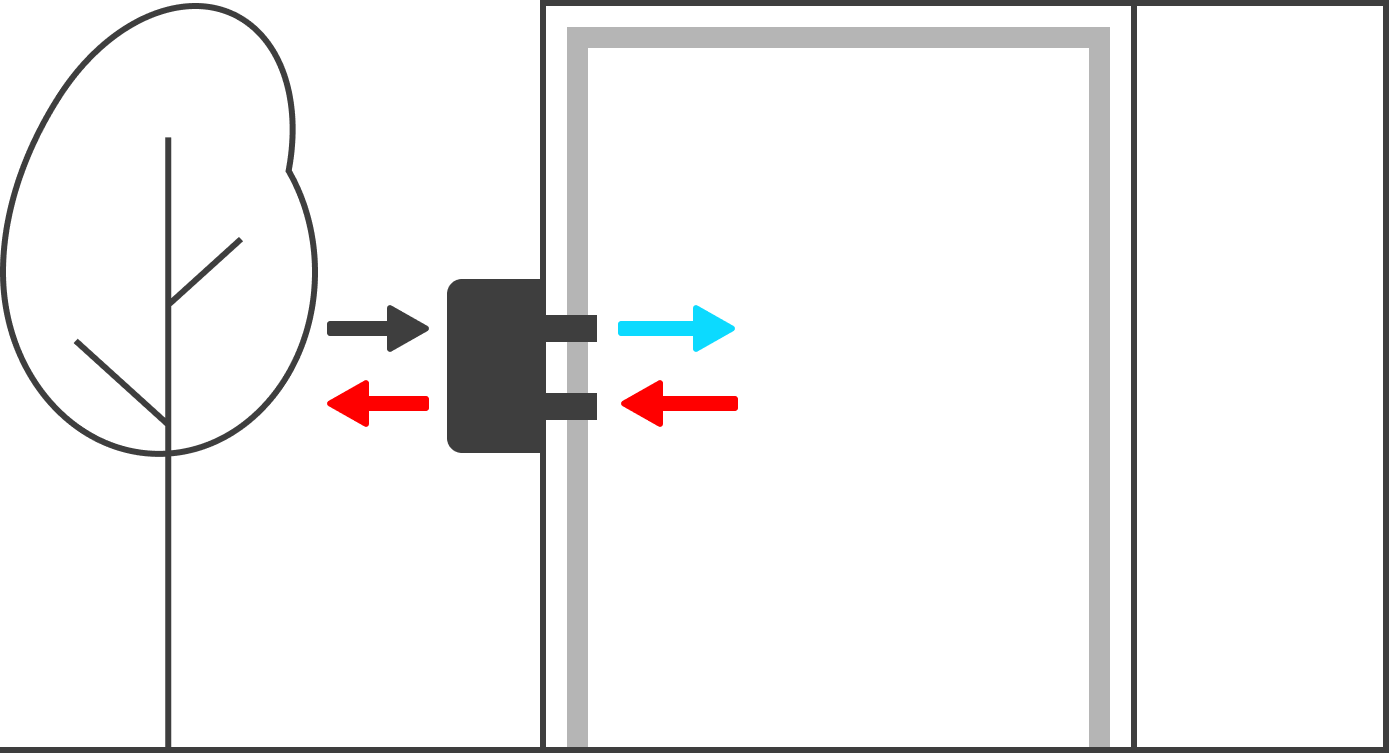

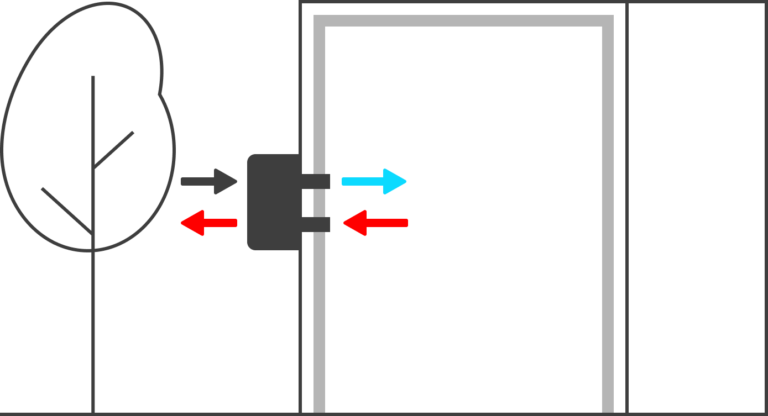

Outdoor ducting

Need help with installation?

WineMaster will put you in touch with a professional installer in its network. Contact us

Silence and discretion

WineMaster offers a discreet air-conditioning unit with a different design and even greater performance. Wine OUT25X is installed outside your cellar, it can air condition up to 25m³ and benefits from numerous advantages such as silence and energy savings.

Connect your Wine OUT25 X air conditioner with WineMaster Connect

Thanks to WineMaster Connect, you can remotely control the settings and ensure that your air conditioner is working properly. Monitor and modify the main operating parameters in real time and be alerted to any drift.

Discover WineMaster Connect
