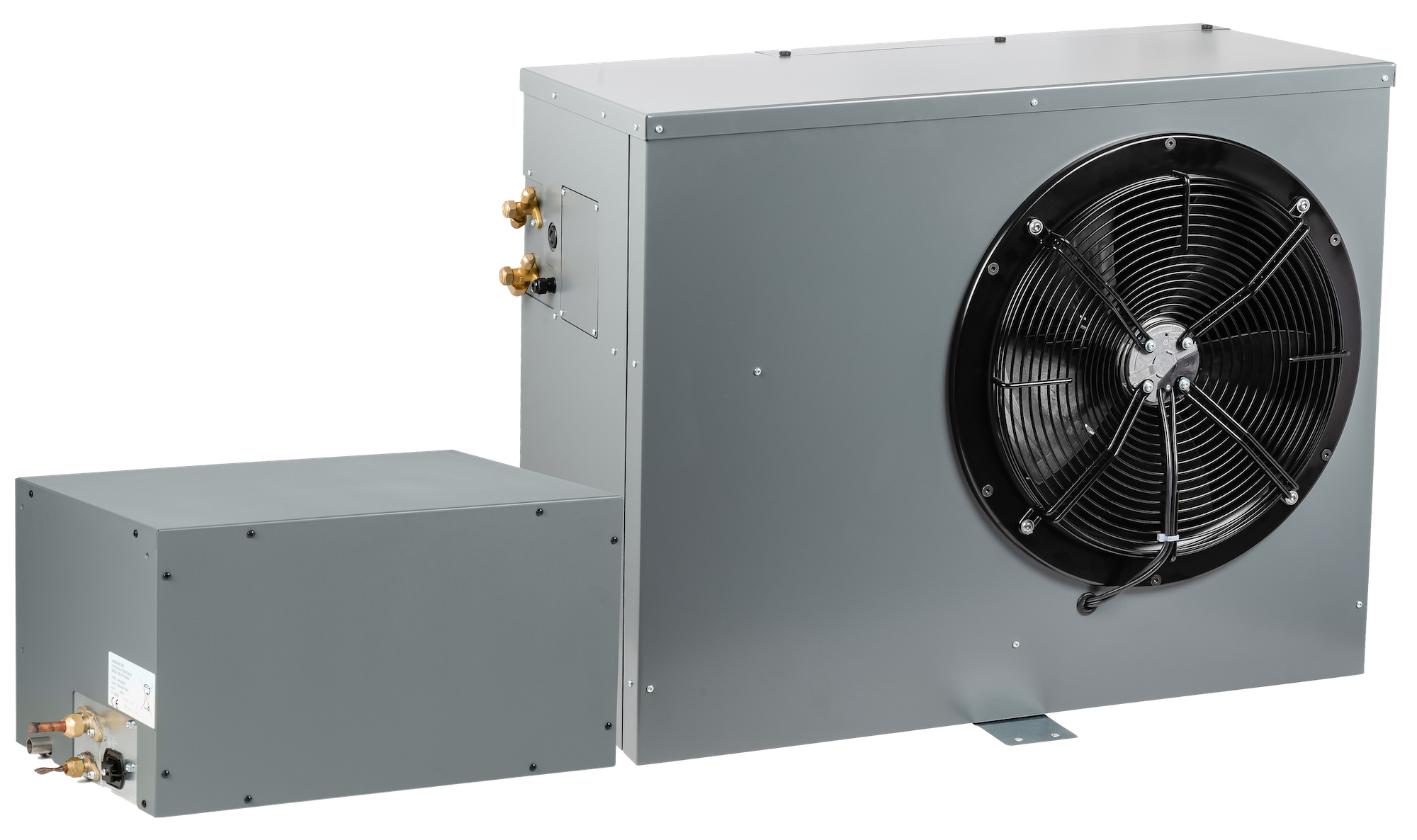

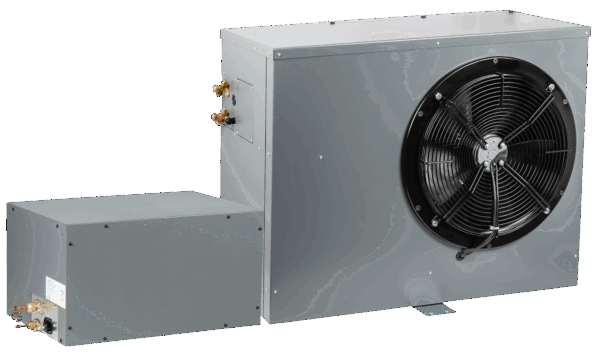

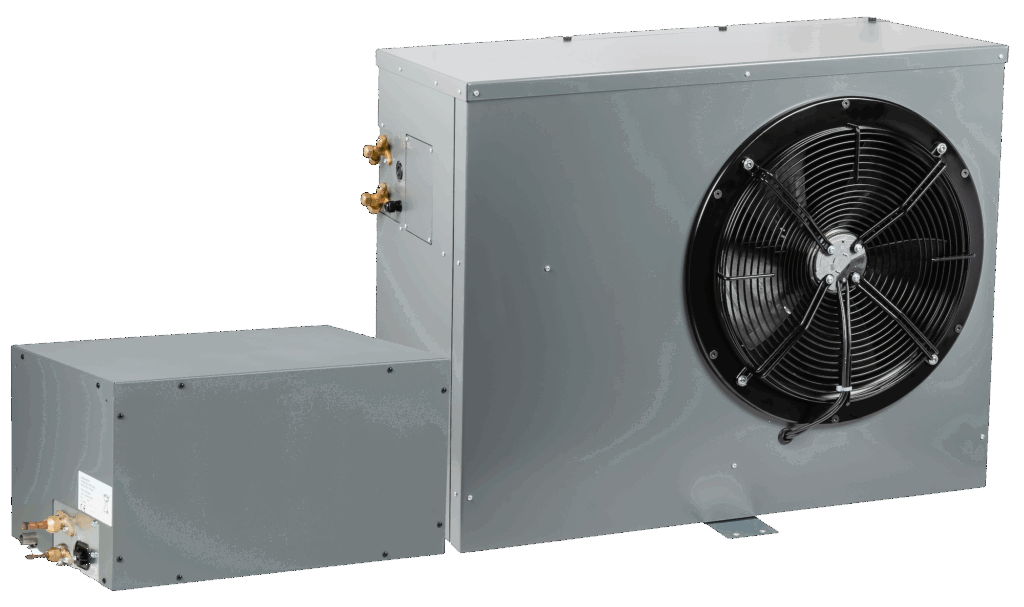

Wine SP40 CA PRO

WineMaster is launching a new range of SPLIT SP40 wine cellar air conditioners to meet the demands of building glassed-in areas.

PRO versions are refrigerant-free and must be installed by a professional.

Secure online payment
Installation and personalised support
Fast delivery and tracking

Technical data

Air-conditioning capacity	Up to 40 m³
Cooling capacity (watt)	900
Heating power (watt)	500
Air flow rate	840 m³/h
Noise level	42db (1m)
Net weight	60 Kg
Dimensions H x W x D	640 x 853 x 424 mm
Power supply	230-240 V - 50Hz
Body colour	RAL 7012
Refrigerant	R1234yf
HP safety pressure switch	Yes
Oil separator	Yes
Pressostatic variable speed drive	Yes
Waterproof electrical box	Yes
Non-return valve	Yes
Washable air filter	Yes
Refrigeration connections	1/4 and 3/8
Heating belt	Yes
Net weight (indoor unit)	17 Kg
Dimensions H x W x D (indoor unit)	262x517x327 mm
Body colour (indoor unit)	RAL 7012
Number of speeds (indoor unit)	2
Dryer (indoor unit)	Yes
Thermostatic expansion valve (indoor unit)	Yes
Heating resistor (indoor unit)	Yes
Control (indoor unit)	wired

*: With insulation adapted to the temperature and volume of the cellar

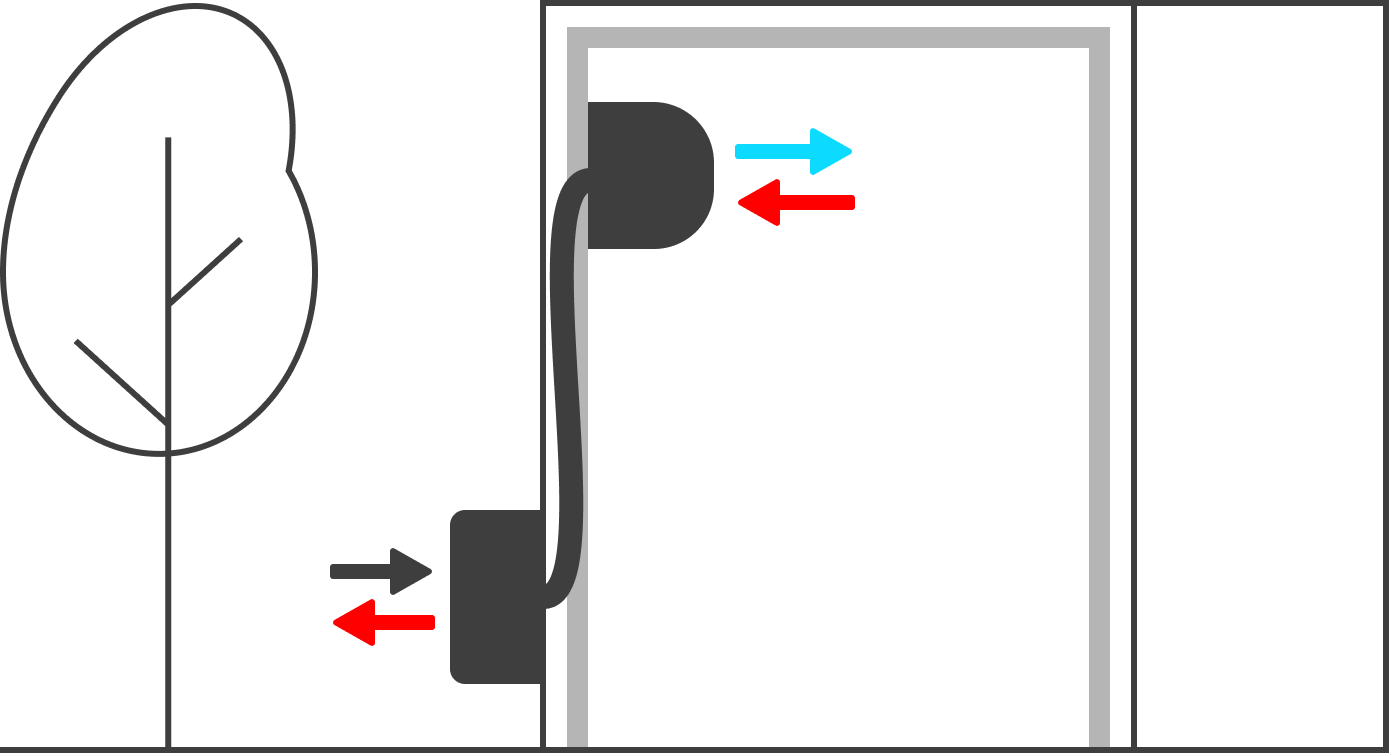

Installation

Mural

Need help with installation?

WineMaster will put you in touch with a professional installer in its network. Contact us

The most beautiful shop window

WineMaster is launching a new range of SPLIT SP40 wine cellar air conditioners to meet the demands of building glassed-in areas.

Whether you’re an enthusiastic wine lover or a professional restaurateur, your wine collection deserves the finest showcase for everyone to enjoy.

Connect your SP40 CA PRO air conditioner with WineMaster Connect

Thanks to WineMaster Connect, you can remotely control the settings and ensure that your air conditioner is working properly. Monitor and modify the main operating parameters in real time and be alerted to any drift.

Discover WineMaster Connect
