WINE SP40-CA

Showcase your wines!

Download the PDF brochure

A New Generation In Air Conditioners

To meet the building requirement demanded by glass-paneled spaces, WineMaster is launching a new line of wine cellar air conditioners: the SPLIT SP40.

40m3
Conditions up to 40m3
8-18°c
High-performance built-in thermostat
Environment-friendly
Ideal environmental conditions to preserve your wines
Quiet operation

An Optimal Air Conditioning Solution

The WineMaster range was designed to provide an optimal air conditioning solution to your dream wine cellar. It's constant temperature and retained humidity levels mean your wines will blossom through the year in a wine cellar that provides the very best conditions.

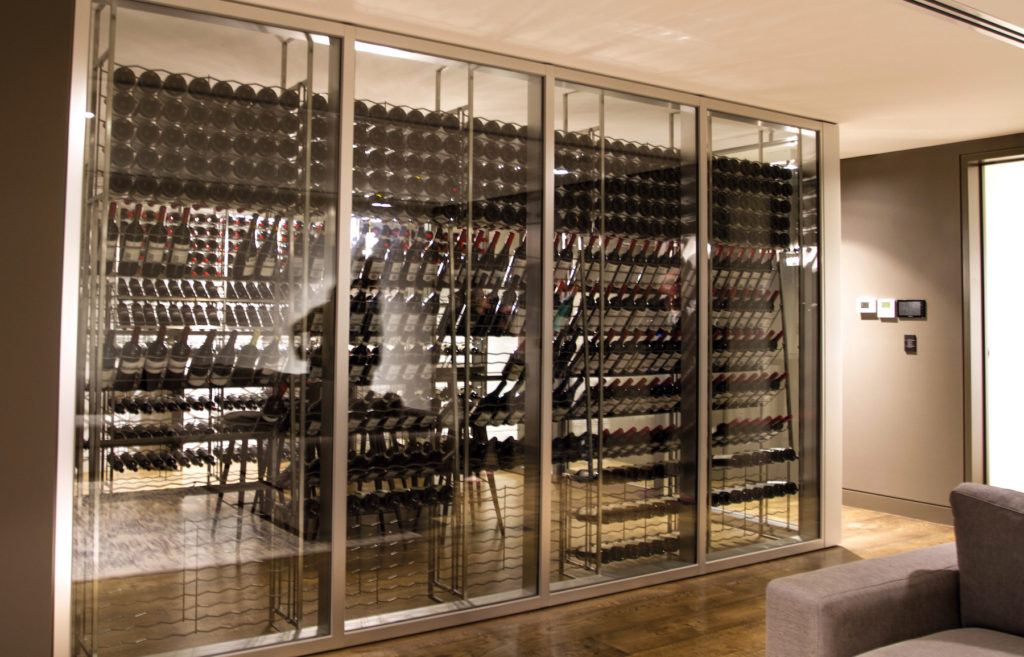

The WINESP40CA integrates perfectly into a glass-paneled space.

REFERENCE
WINE SP40 CA PRO
WINE SP40 CA 4.1
WINE SP40 CA 8.1
CAPACITY
Up to 40 m3
Up to 40 m3
Up to 40 m3
COOLING CAPACITY
900 W
900 W
900 W
DIMENSIONS H X W X D (MM) INDOOR UNIT
262 x 517 x 327 mm
262 x 517 x 327 mm
262 x 517 x 327 mm
DIMENSIONS H X W X D (MM) OUTDOOR UNIT
316 x 633 x 360 mm
316 x 633 x 360 mm
316 x 633 x 360 mm
WEIGHT (INDOR AND OUTDOOR UNITS)
35 Kg + 17 Kg
35 Kg + 17 Kg
35 Kg + 17 Kg
POWER SUPPLY
230-240 V - 50 Hz
230-240 V - 50 Hz
230-240 V - 50 Hz
NOISE LEVEL (AT 1 M AND AT 5 M)
59 db / 49 db
59 db / 49 db
59 db / 49 db
WARRANTY PERIOD
2 years
2 years
2 years
CONNECTION PRE-CHARGED WITH REFRIGERANT
4 m
8 m

Make Your Choice

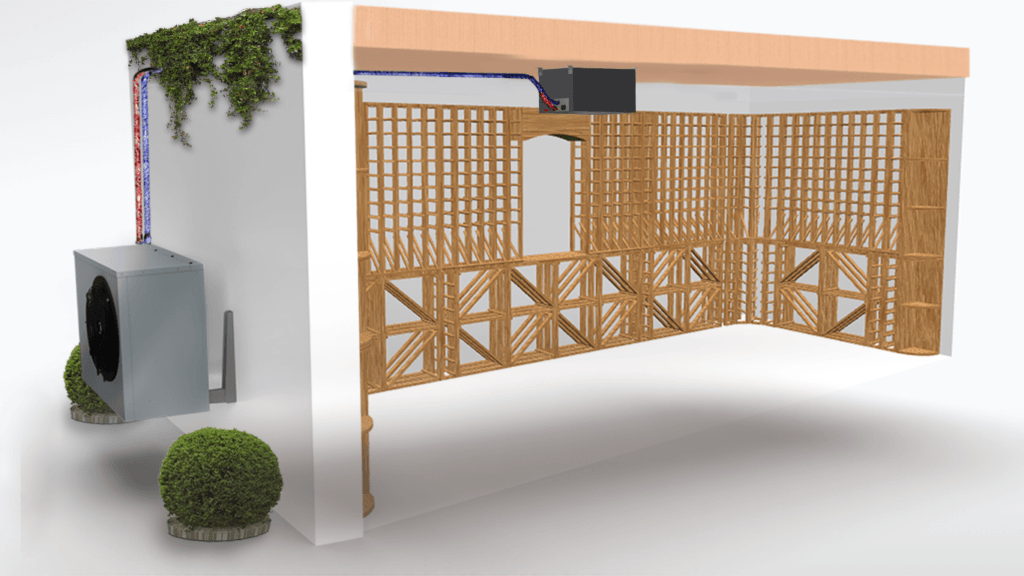

The WineMaster SP40 CA is available in three different versions: the Split Pro, which allows connections with a maximum total length of 20 m and up to 10 m in height drop, and two other models with flexible, insulated, pre-charged connections of 4 m and 8 m, for easier installation of the indoor to outdoor connection. There is no need for replacement filters, as the built-in filter is washable.
