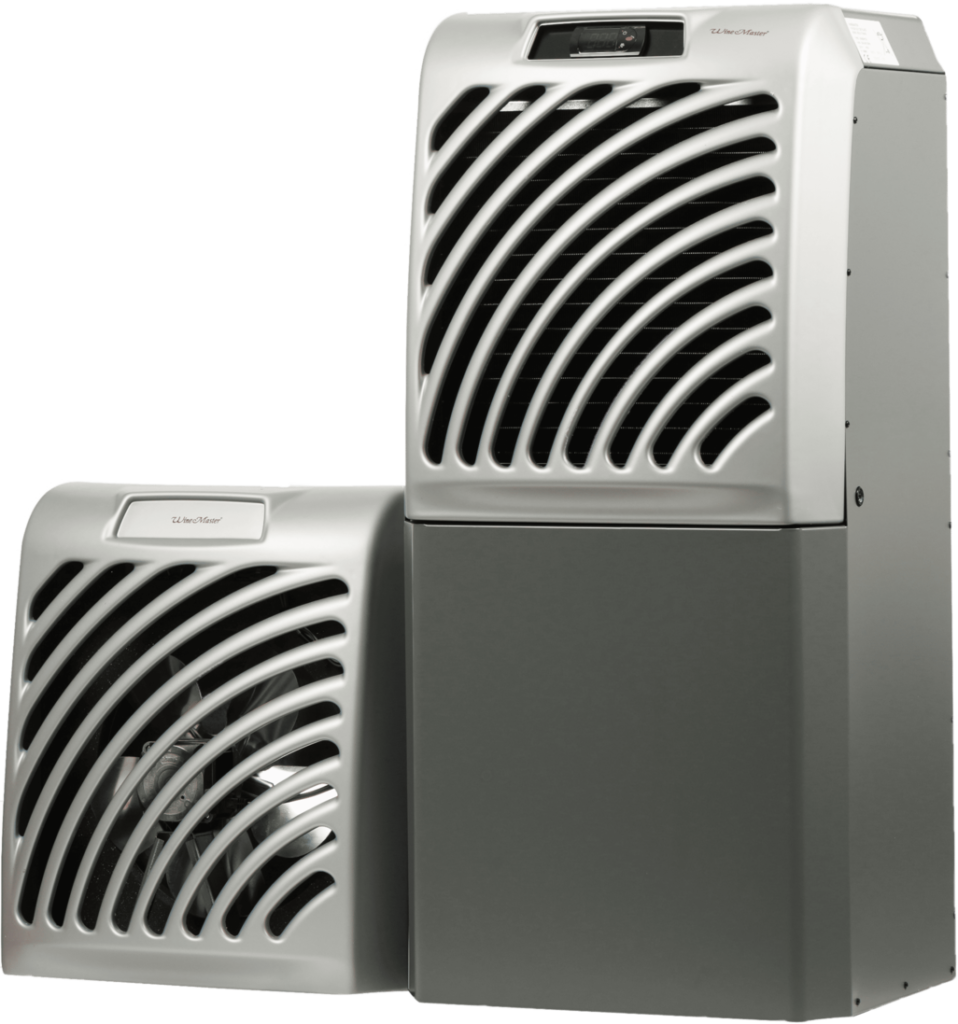

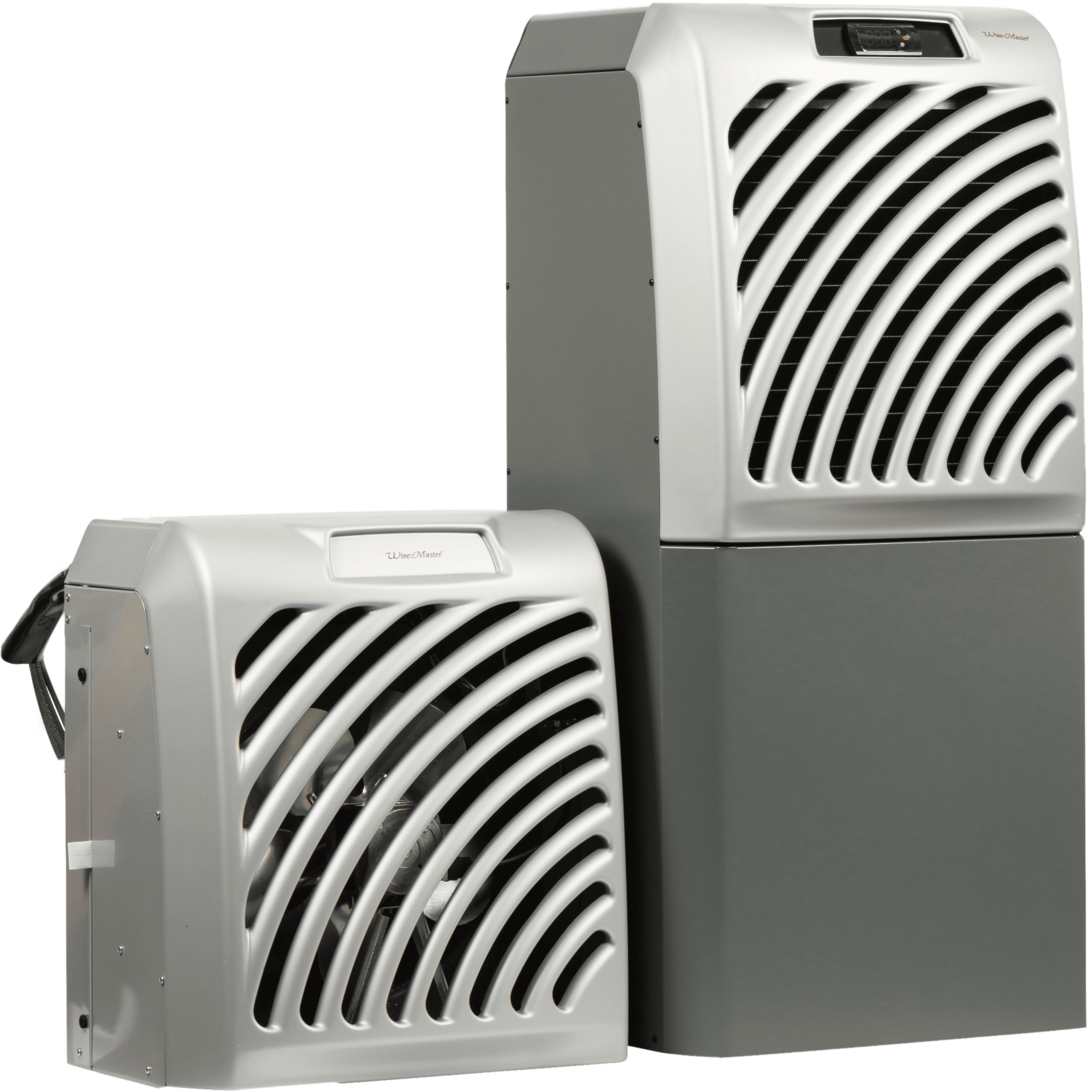

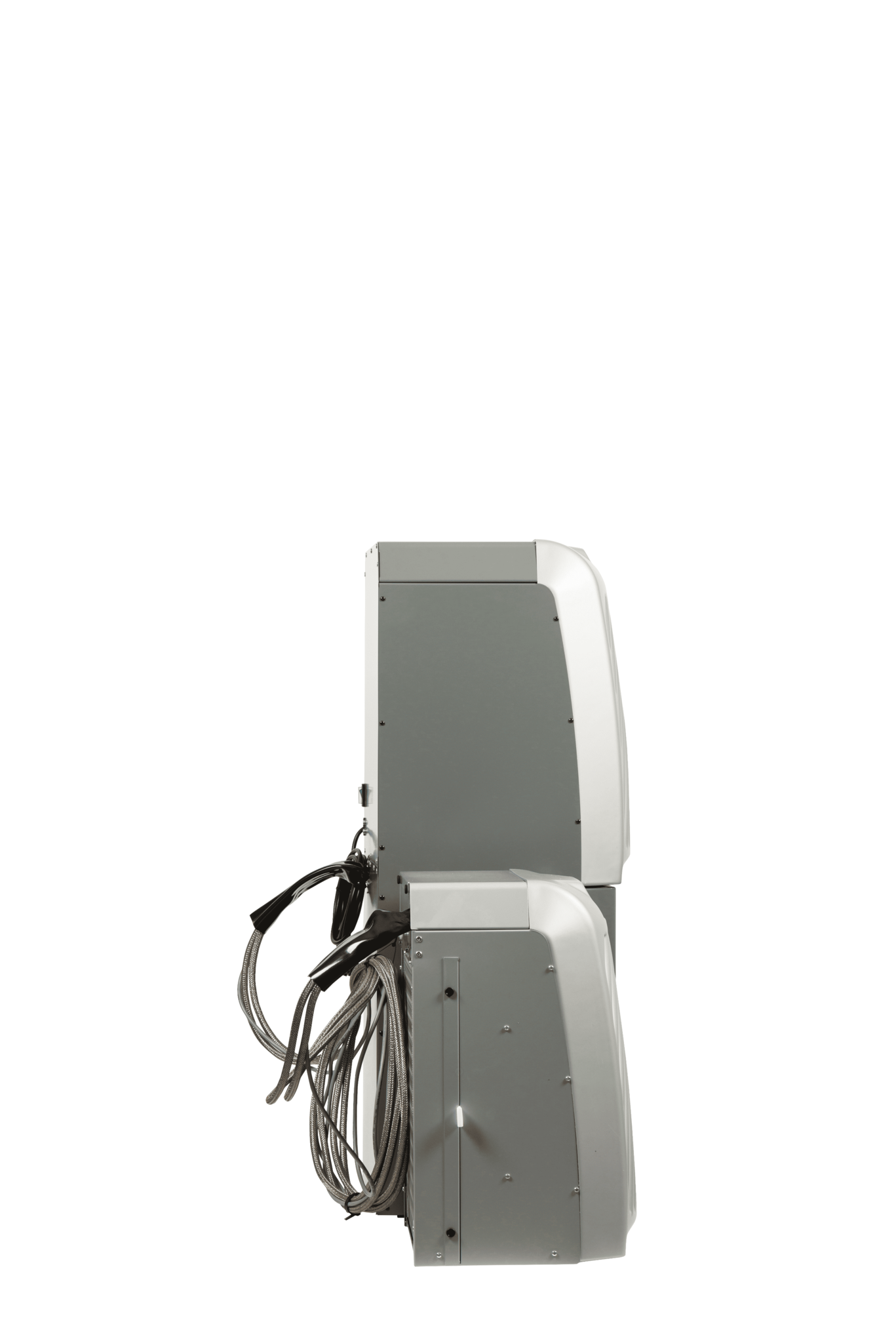

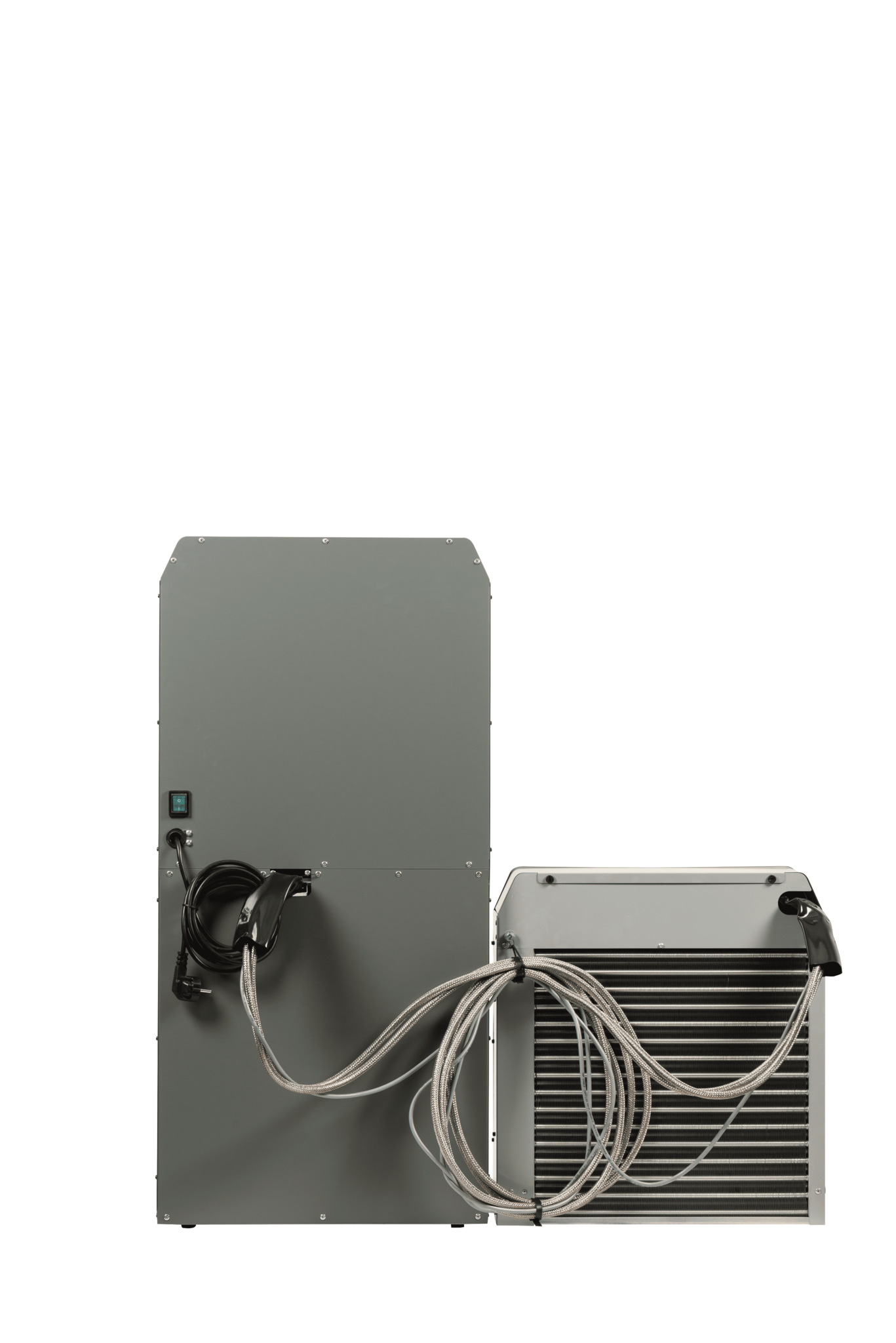

Wine SP100

Designed for volumes of up to 100 m³, WineMaster SP100 air conditioners offer exceptional efficiency and real energy savings.

Secure online payment
Personalised telephone support
Fast delivery and tracking

Technical data

Power supply	230-240 V - 50Hz
Air-conditioning capacity*	Up to 100 m³
Overall dimensions	W.480 x H.1005 x D.395 mm
Net weight	64 Kg
Cooling capacity	2500 W at 12 °C
Power consumption	1250 W
Noise level in the cellar (at 1m and 3m)	53 dB / 50 dB
Cellar airflow (cold side)	500 m³/h
Outside air flow rate (warm side)	750 m³/h
Refrigerant	R407 C
Heating resistor	1000 W
Setting the temperature	Preset at 12°C, adjustable between 8 and 18°C*.
Max. outdoor temperature** (°C)	35°C
Link length	4 metres

Power supply	230-240 V - 50Hz
Air-conditioning capacity*	Up to 100 m³
Overall dimensions	W.480 x H.1005 x D.395 mm
Net weight	64 Kg
Cooling capacity	2500 W at 12 °C
Power consumption	1250 W
Noise level in the cellar (at 1m and 3m)	53 dB / 50 dB
Cellar airflow (cold side)	500 m³/h
Outside air flow rate (warm side)	750 m³/h
Refrigerant	R407 C
Heating resistor	1000 W
Setting the temperature	Preset at 12°C, adjustable between 8 and 18°C*.
Max. outdoor temperature** (°C)	35°C
Link length	8 metres

Power supply	230-240 V - 50Hz
Air-conditioning capacity*	Up to 100 m³
Overall dimensions	W.480 x H.1005 x D.395 mm
Net weight	64 Kg
Cooling capacity	2500 W at 12 °C
Power consumption	1250 W
Noise level in the cellar (at 1m and 3m)	53 dB / 50 dB
Cellar airflow (cold side)	500 m³/h
Outside air flow rate (warm side)	750 m³/h
Refrigerant	R407 C
Heating resistor	1000 W
Setting the temperature	Preset at 12°C, adjustable between 8 and 18°C*.
Max. outdoor temperature** (°C)	35°C
Link length	max 15 metres

*: With insulation adapted to the temperature and volume of the cellar

Besoin d’aide ?

Vous avez des questions sur nos produits ?  Notre équipe technique se tient à votre disposition pour répondre à vos questions :

Private individuals Hotline
+33 3 89 37 75 05

Professionals Hotline
+33 3 89 37 75 15

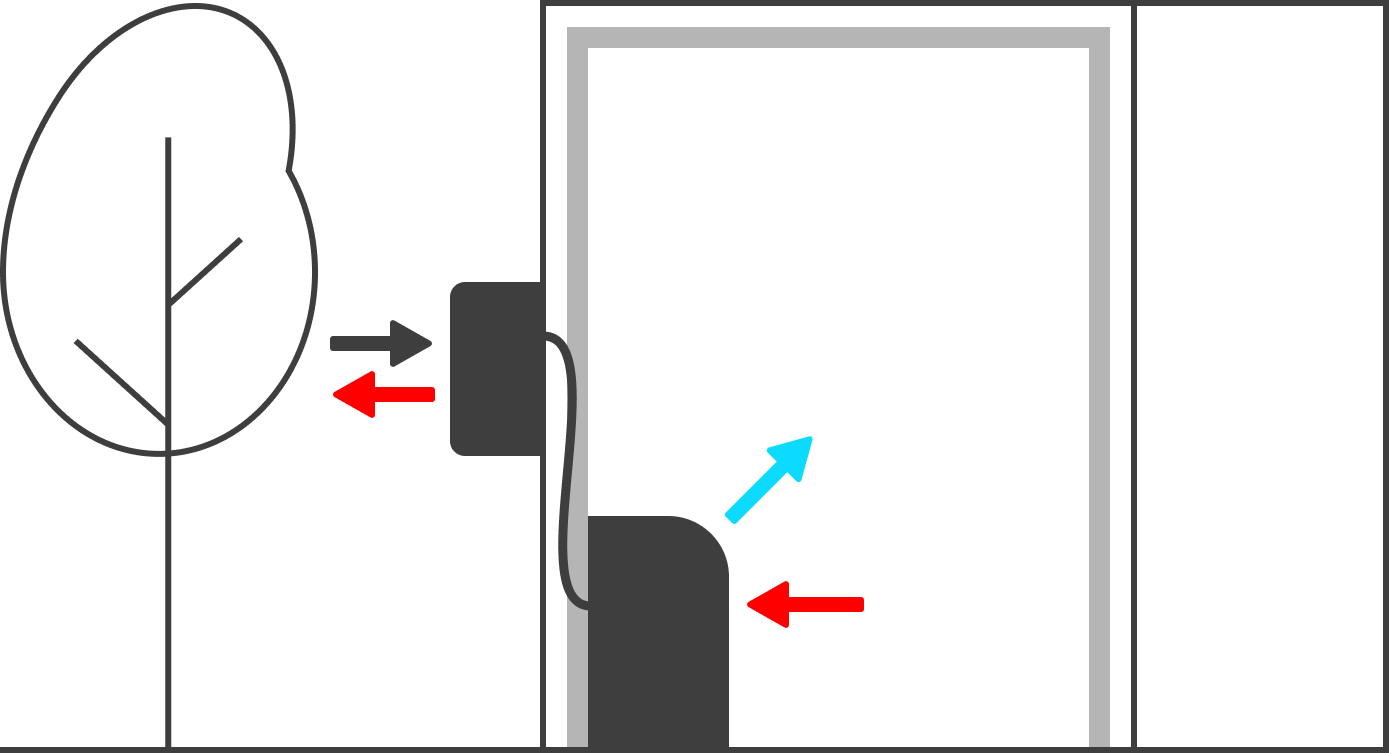

Installation

Floor-standing

Need help with installation?

WineMaster will put you in touch with a professional installer in its network. Contact us

Efficiency and low consumption

Designed for volumes of up to 100 m³, WineMaster SP100 air conditioners offer exceptional efficiency and real energy savings.

Connect your Wine SP100 air conditioner with WineMaster Connect

Thanks to WineMaster Connect, you can remotely control the settings and ensure that your air conditioner is working properly. Monitor and modify the main operating parameters in real time and be alerted to any drift.

Discover WineMaster Connect
